750W无刷直流电机-86法兰高压无刷电机
Author：admin Views：210【Close】
2019-07-29 14:16
1 .Detailed description
Winding type Star shape Electrical angle 120°c Insulation class B Ambient temperature -20°C~50°C Insulation resistance 100MΩMin.500VC DC Dielectric strength 500v AC 1 minute
2. Custom description
1.The output shaft can be customized, the diameter range is 8-15mm
2.Voltage and speed can be customized according to requirements
3.Can be equipped with various types of gearboxes, can be equipped with various brakes/encoders/synchronous wheels, etc.

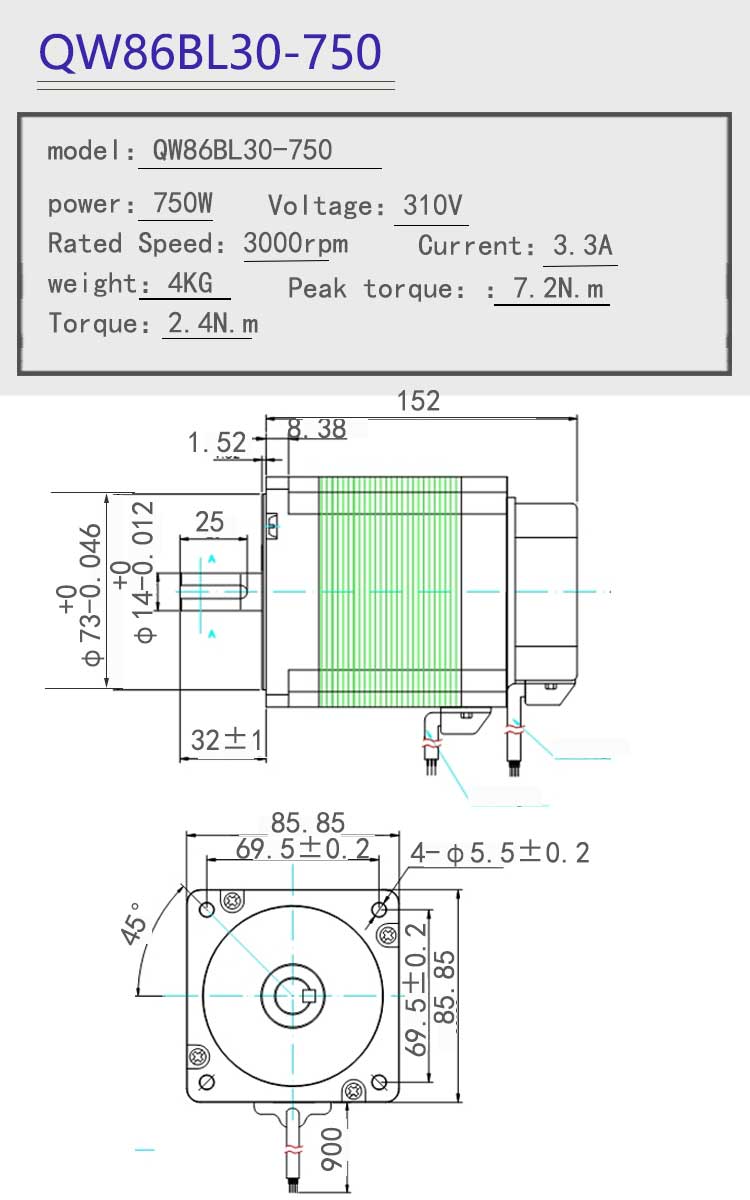

3. Dimensions
4. 86 frame parameter selection table
model Voltage Rated speed Rated current Rated torque power QW86BLD
30-25024 3000 14 0.8 250 QW86BLD
30-50048 3000 14 1.6 500 QW86BLD
30-75048 3000 21 2.4 750 QW86BLD
30-750310 3000 3.3 2.4 750
