750W brushless motor 3000 rpm-80 DC brushless motor
Author：admin Views：【Close】
2019-07-29 15:29
1.Detailed description
Winding type Star shape Electrical angle 120°c Insulation class B Ambient temperature -20°C~50°C Insulation resistance 100MΩMin.500VC DC Dielectric strength 500v AC 1 minute
2. Custom description
1.The output shaft can be customized, the diameter range is 8-15mm
2.Voltage and speed can be customized according to requirements
3.Can be equipped with various types of gearboxes, can be equipped with various brakes/encoders/synchronous wheels, etc.

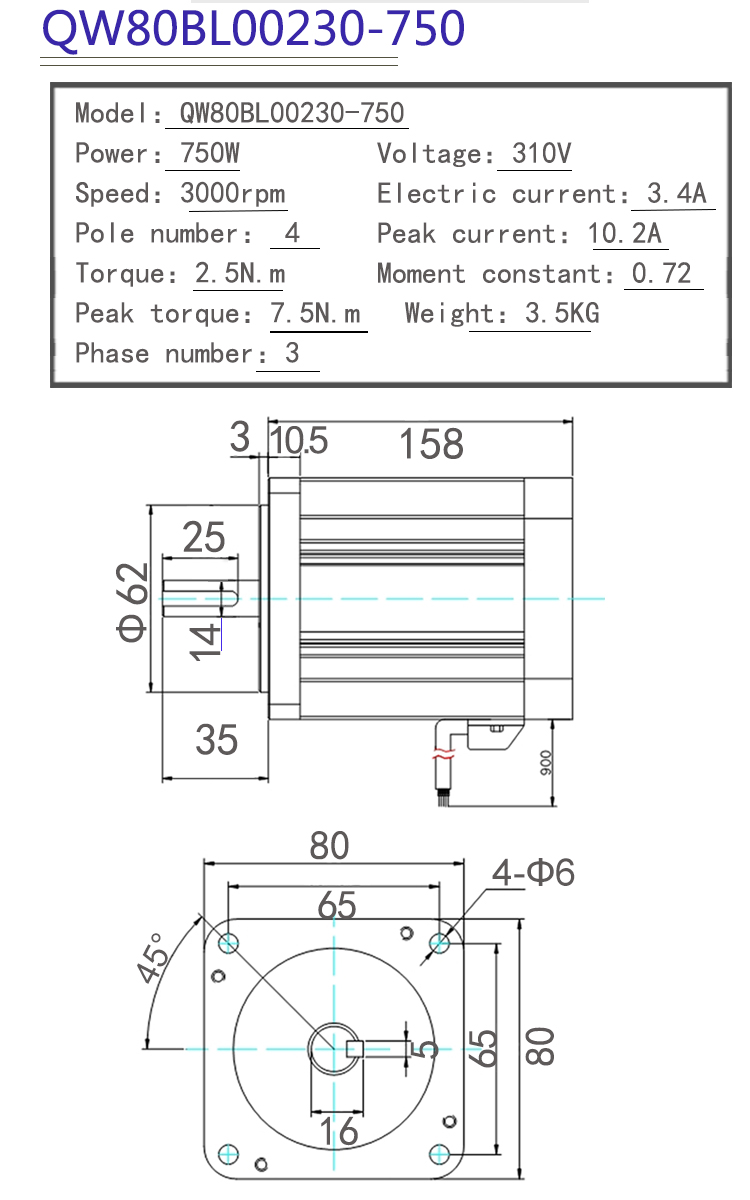

3. Dimensions
4. 80frame parameter selection table
model Voltage Rated speed Rated current Rated torque power QW80BL
D2430-30048 3000 8.7 1 313 QW80BL
00730-300310 3000 1.4 1 313 QW80BL
00730-450310 3000 2.1 1.5 470 QW80BL
00730-650310 3000 2.7 2 627 QW80BL
00730-750310 3000 3.4 2.5 785
- Qiwo 310V brushless motor, 310V brushless DC motor, 450W brushless motor and 450W brushless DC motor are composed of permanent magnet rotor, multipole winding stator and position sensor. Because the brushless DC motor is operated by self-control, it will not add another starting winding on the rotor like the synchronous motor with heavy load starting under variable frequency speed regulation, and it will not produce oscillation and out of step when the load changes suddenly. The operation efficiency, low-speed torque, speed accuracy of Brushless DC motor are better than any inverter control technology, so it has attracted the attention of the industry. About brushless motor voltage, power, speed, with gearbox and other performance problems, or motor custom development, driver custom development. email: qiwomtor@163.com .
